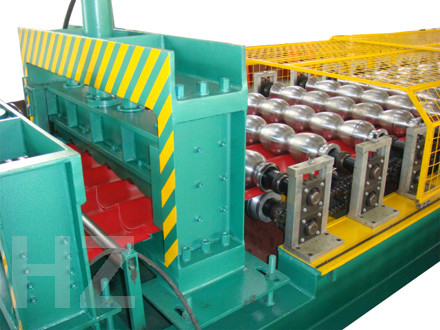

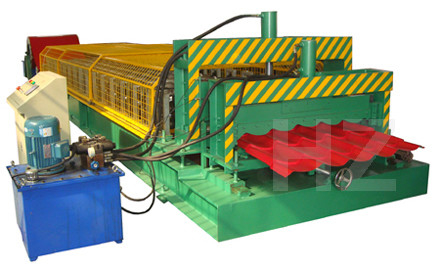

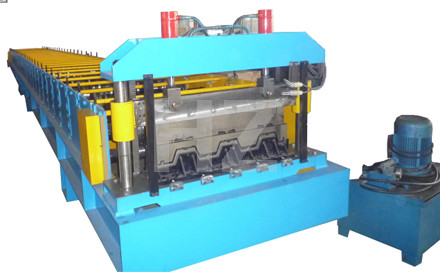

Stahlkonstruktions-Boden-Plattform-Rolle, die Maschine für Dach-Plattform, Stahlfliese TW-FD1250 bildet

Herkunftsort Wuxi China
Markenname LONGBO
Zertifizierung CE; ISO9001
Modellnummer LB-400-500-600
Min Bestellmenge 1 Satz
Preis negotiation
Verpackung Informationen Wasserbeweispaket
Lieferzeit 90 Tage
Zahlungsbedingungen L/C, D/P, T/T
Versorgungsmaterial-Fähigkeit 2 pro Monat
Produktdetails
Rollen materiell #45, Grad HRC58 Dicke 0.3~0.8mm PPGI
Arbeitsgeschwindigkeit 5~12m/min certification ISO9001; CE
Markieren

Metal Deck Profiliermaschine

,

Bodenroste Maschine bildet

,

Blechumformung Ausrüstung

Hinterlass eine Nachricht
Produkt-Beschreibung

Stahlkonstruktions-Boden-Plattform-Rolle, die Maschine für Dach-Plattform, Stahlfliese TW-FD1250 bildet

Hauptspezifikationen der Boden-Plattform-Rolle, die Maschine bildet

  • Material-Spezifikt.: Galvanisiertes Stahlblech
  • Stärke des Spulen-Blattes: 0,8 --1,2 Millimeter
  • Hauptleistungsstärke der Boden Deckingrolle, die Maschine bildet: 18.5kw
  • Formung von Geschwindigkeit: 10--12m/min
  • Hydraulische Stations-Kraft: 4kw
  • Quantität Stände: Ungefähr 24 Gruppen
  • Hydrostatischer Druck: 10~12Mpa
  • Steuersystem: PLC
  • Index-Fehler der Länge: 10m±1.5mm
  • Gesamtgewicht: Über 1800kg
  • Spannung: Phase 50Hz 380V 3 oder an der Käuferanforderung

Hauptkomponenten

  • Decoiler ------------------------------------------------- 1 Einheit
  • Fütterung ------------------------------------------------- 1 Einheit
  • Hauptrolle, die Maschine bildet ----------------------------1 Einheit
  • Hydraulische Schneidvorrichtung ------------------------------1 Einheit
  • Hydraulische Station ------------------------------------- 1 Einheit
  • Plc-Rechnersteuerung --------------------------------1 Einheit
  • Ertragtabelle ------------------------------------------- 1 Einheit

Stahlkonstruktions-Boden-Plattform-Rolle, die Maschine für Dach-Plattform, Stahlfliese TW-FD1250 bildet

Bezugszeichnungen

Stahlkonstruktions-Boden-Plattform-Rolle, die Maschine für Dach-Plattform, Stahlfliese TW-FD1250 bildet

Stahlkonstruktions-Boden-Plattform-Rolle, die Maschine für Dach-Plattform, Stahlfliese TW-FD1250 bildet

Anwendung

Stahlbodenplattform, Metallplattform, Stahlplattform, Metalldeckingblatt, Stahlkonstruktionsbodenplattform…

Stahlkonstruktions-Boden-Plattform-Rolle, die Maschine für Dach-Plattform, Stahlfliese TW-FD1250 bildet

Unser Vorteil

  • Hohe Qualität
  • Zuverlässig
  • Dauerhaft
  • Angemessener Preis
  • Gut nach Service
  • 1-jährige Garantie
  • Mehr als 10 Jahre Erfahrungs-
